Additional information
| Electrical | Current Rating (Amps): 10 Average DC Resistance lower than (mOhm): 25 | ||||
|---|---|---|---|---|---|
| Materials & Finishes | Barrel Material: Brass, Gold plated Plunger Material: Hardened BeCu, Gold plated over hard Nickel | ||||
| Spring Material |
| ||||

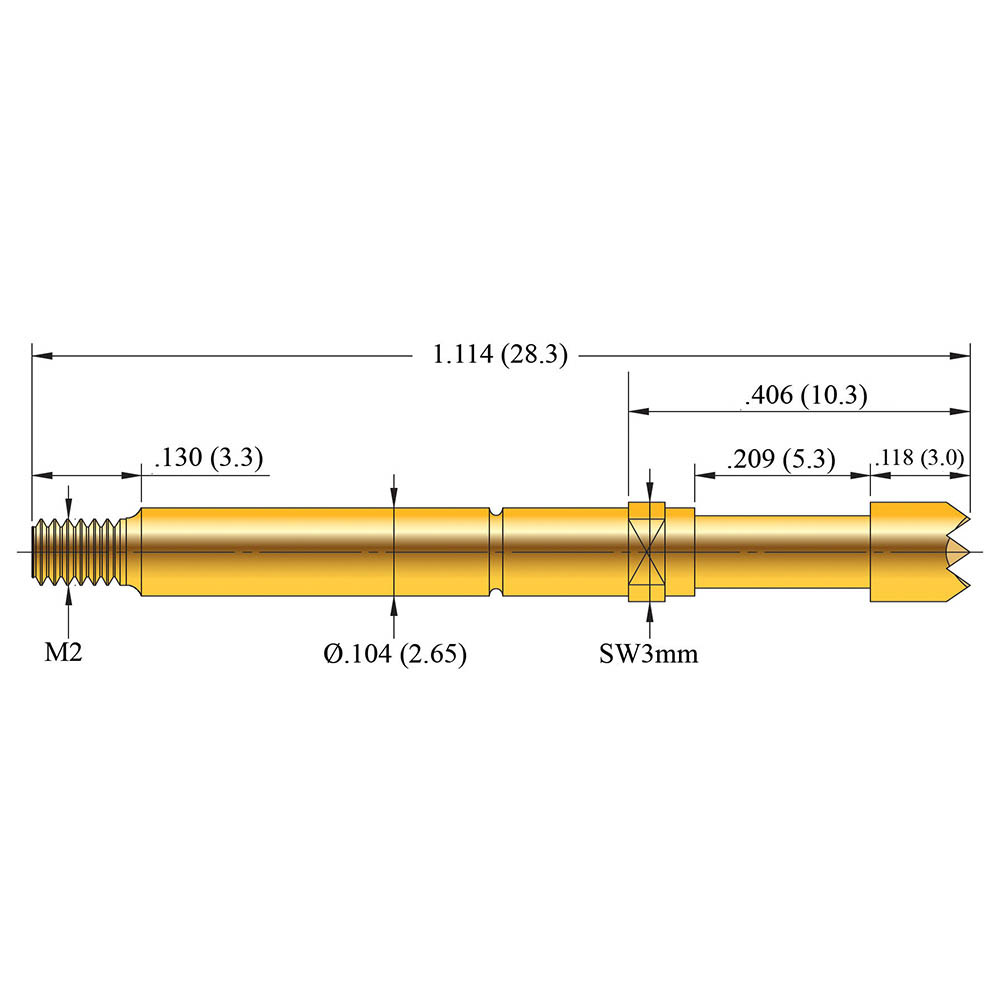

| Mechanical | Test Center (mil): 157 Test Center (mm): 3.99 Full Travel (mil): 197 Full Travel (mm): 5.00 Recommended Travel (mil): 157 Recommended Travel (mm): 4.00 Overall Length (mil): 1,114 Overall Length (mm): 28.30 | ||||
| Thermal | Min Operating Temp (°C): -20 Max Operating Temp (°C): 80 |
