Additional information
| Electrical | Current Rating (Amps): 5 Average Probe Resistance (mOhm): 50 | ||||
|---|---|---|---|---|---|
| Materials & Finishes | Barrel Material: Work-hardened Nickel Silver, Silver plated Plunger Material: BeCu, Gold plated Insulator Material: DELRIN™ Terminal Material: BeCu, Silver plated | ||||
| Spring Material |
| ||||

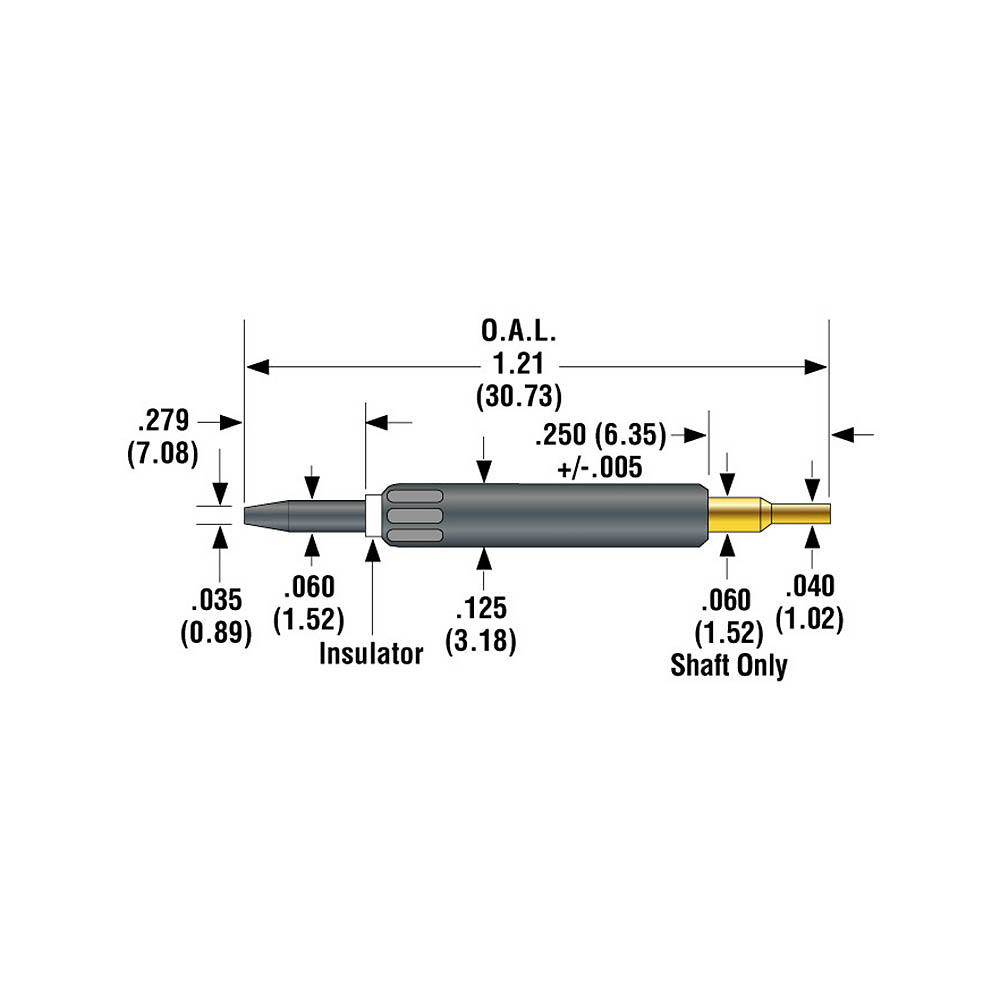

| Mechanical | Test Center (mil): 187 Test Center (mm): 4.75 Full Travel (mil): 150 Full Travel (mm): 3.81 Recommended Travel (mil): 100 Recommended Travel (mm): 2.54 Mechanical Life (no of cyles): 100,000 Overall Length (mil): 1,210 Overall Length (mm): 30.73 Switch Point (mil): 25 Switch Point (mm): 0.64 | ||||
| Thermal | Min Operating Temp (°C): -55 Max Operating Temp (°C): 150 | ||||
